RIM LOCK

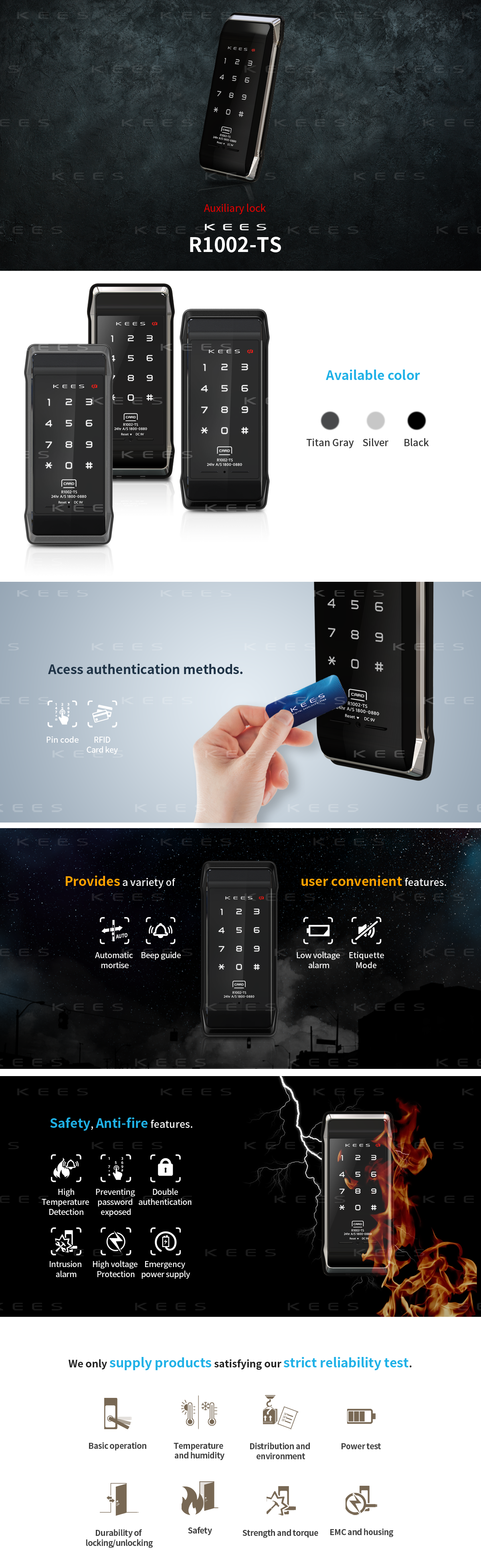

R1002-TS

Electronic Rim Lock

Touchable Keypad

Pin Code Access

One Time Password

RFID Card

Automatic Locking

Optional: Remote door lock control via BLE communication pack


SPECS

  • Rim Lock

    Electronic Rim Lock

  • Unlocking Method/Iris Authentication

    N/A

  • Unlocking Method/Fingerprint Authentication

    N/A

  • Unlocking Method/RFID Card Authenticaiton

    Available Max. 50ea Cards(Mifare,Felica)

  • Unlocking Method/Pin Code Authentication

    4~10 Digits number

  • Mechanical Cylinder Key

    N/A

  • Door Thickness(mm)

    40~50mm

  • Backset/Space Length(mm)

    N/A

  • Power

    6VDC(AA Batteries) x 4ea

  • Battery Life (10 times per day)

    Approx. 12 months (manual w/up & w/o network)

    Approx. 8 months(Automatic Wake up & Using RF, Network options)

  • Emergency Battery

    9VDC Battery Port

  • Material

    Al die-cast & ABS mold

  • Weight(KG)

    1.2KGS

  • Dimension(Outer: WxHxD/mm)

    73.8x164.2x20.5mm

  • Dimension(Outer: WxHxD/mm)

    168x101x48mm

  • Dimension(Strike Box: WxHxD/mm)

    N/A

  • Dimension(Mortise: Front WxFront HxD/mm)

    N/A

  • Optional

    BLE Commnuication pack
