BIOMETRIC DEVICE

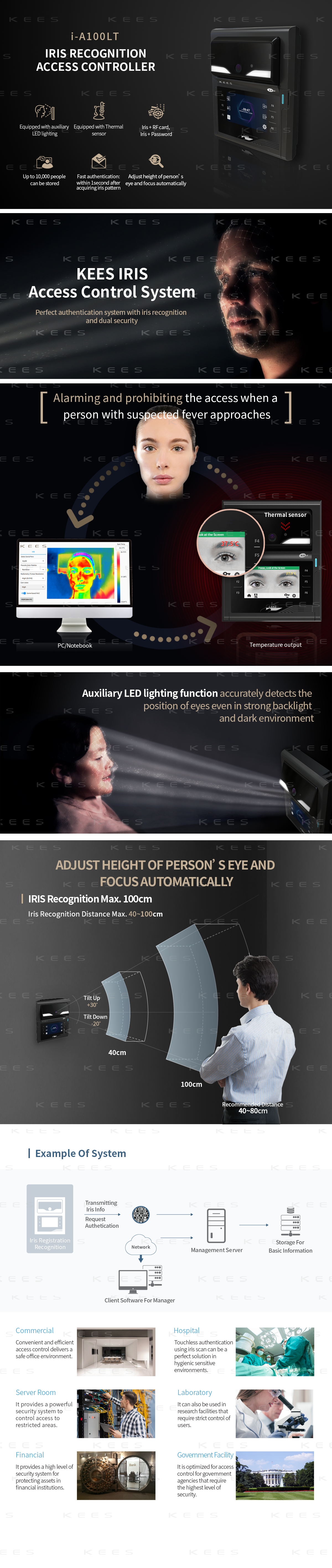

i-A100LT

Iris authentication access control

Iris authentication after facial detection through auto tilting

Multiple authenticaions(Iris+RF Card+Pin code)

Long distance of authentication(40~100cm)

Fast authentication: within 1second after acquiring iris pattern

Store up to 10,000 templates

Visual and voice guidance through LCD and speaker

Temperature scan of authentication attempter by thermal sensor

Auxiliary LED for optimized face detection

Various system interfaces: TCP/IP, RS485, RS232, Wiegand, USB2.0

12VDC

Optional model: i-A100L, i-A100




SPECS

  • Biometric access control

    Iris authentication access control device

  • Firmware platform and OS

    Arm Cortex A9 Quad Core/Linux

  • Mounting height

    130cm

  • Authenticate height range

    145cm~210cm (standard on user height)

  • Authenticate distance range

    40cm~100cm

  • Integration

    SDK available (KT&C API)

  • Encryption

    Server communication:

    TLSv1/SSLv3, 1 WAY, ECDHE-RSA-AES256-GCM-SHA384 DB: AES CBC-256bit/ARIA

  • Authentication methods

    Iris(Single Iris, either eye,etc), Pin code, RFID(optional)

  • Authentication speed

    Within 1sec (After capture sound of iris)

  • FAR(False acceptance rate)

    1/1,000,000

  • Store iris template

    Up to 10,000 templates

  • Iris pattern standard

    ISO-19794-6 standard to capture Iris Pattern

  • Iris image sensor

    3840x2160pixels, 10bit depth

  • Lens to capture Iris Pattern

    5x optical zoom lens

  • Face image sensor

    1MP, 1280x720 pixels

  • IR wavelengths to cpature Iris Pattern

    wavelength of 810nm

  • Thermal sensor resolution

    80X60 pixel

  • Thermal sensitivity

    <50mK (0.050°C)

  • Thermal spectrum

    LWIR(Longwave IR), 8㎛ to 14㎛

  • Auxiliry light

    5,000k, Brightness level control

  • Auto tilt

    +30°/-20°

  • Visual indicators on the LCD

    Red: within 40cm / Green: 40~100cm / Blue: out of 100cm

  • Audio

    2.0W speaker

  • LCD

    4.2” TFT LCD(800X480), Capacitive touch screen

  • Tamper detection

    Tamper 1(Product separation detection)

    Tamper 2(LCD cover open detection)

  • Voice guidance

    Support English ,Korean, Chinese

  • Relay

    Relay x2

  • GPIO

    TTL Input x 4(TTL Input_DC5V)

  • Other ports

    USB 2.0

  • Card reader

    13.56Mhz Mifare(optional)

  • Ethernet

    10/100 Base-T Ethernet(RJ45 connector)

  • Wiegand input/output

    Input 1ch, output 1ch

  • RS232

    1ch

  • RS485

    1ch

  • Power input

    DC12V(±10%)

  • Power consumption

    Max. 2.2A

  • Dimension(mm)

    172(W)X210(H)X66(D)mm without wall mount plate

  • Weight(g)

    Approx. 1,180g

  • Operating temperature

    32°F~113°F (0°C~45°C)

  • Storge Temperature

    -4°F~140°F (-20°C~60°C)

  • Humidity

    10%~90% Relative Humidity Non-Condensing

  • Installation mount

    Standard: Wall mounting / Flush mount(Optional)

  • Certificates

    CE, FCC, KC, IEC62741(Eye safety)

  • Optional model

    i-A100L(Without thermal sensor, with auxiliary light

    i-A100(Without thermal sensor and auxiliary light)
