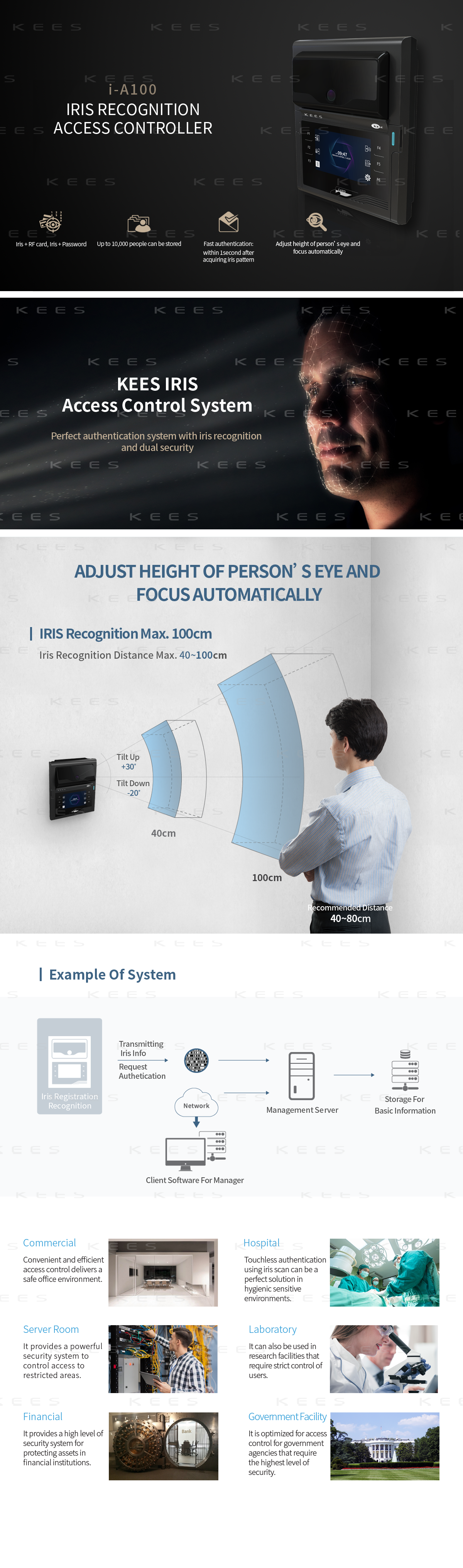

BIOMETRIC DEVICE

i-A100

Iris authentication access control

Iris authentication after facial detection through auto tilting

Multiple authenticaions(Iris+RF Card+Pin code)

Long distance of authentication(40~100cm)

Fast authentication: within 1second after acquiring iris pattern

Store up to 10,000 templates

Visual and voice guidance through LCD and speaker

Various system interfaces: TCP/IP, RS485, RS232, Wiegand, USB2.0

12VDC



SPECS

  • Biometric access control

    Iris authentication access control device

  • Firmware platform and OS

    Arm Cortex A9 Quad Core/Linux

  • Mounting height

    130cm

  • Authenticate height range

    145cm~210cm (standard on user height)

  • Authenticate distance range

    40cm~99cm

  • Integration

    SDK available (KT&C API)

  • Encryption

    Server communication:

    TLSv1/SSLv3, 1 WAY, ECDHE-RSA-AES256-GCM-SHA384 DB Backup: AES 128

  • Authentication methods

    Iris(Single Iris, either eye,etc), Pin code, RFID(optional)

  • Authentication speed

    Within 1sec (After capture sound of iris)

  • FAR(False acceptance rate)

    1/1,000,000

  • Store iris template

    Up to 10,000 templates

  • Iris pattern standard

    ISO-19794-6 standard to capture Iris Pattern

  • Iris image sensor

    3840x2160pixels, 10bit depth

  • Lens to capture Iris Pattern

    5x optical zoom lens

  • Face image sensor

    1MP, 1280x720 pixels

  • IR wavelengths to cpature Iris Pattern

    wavelength of 810nm

  • Auto tilt

    +30°/-20°

  • Visual indicators on the LCD

    Red: Too close / Green: In capture range / Blue: Too far away

  • Audio

    2.0W speaker

  • LCD

    4.2” TFT LCD(800X480), Capacitive touch screen

  • Tamper detection

    Tamper 1(Product separation detection)

    Tamper 2(LCD cover open detection)

  • Voice guidance

    Support English ,Korean, Chinese

  • Relay

    Relay x2

  • GPIO

    TTL Input x 4(TTL Input_DC5V)

  • Other ports

    USB 2.0

  • Card reader

    13.56Mhz Mifare(optional)

  • Ethernet

    10/100 Base-T Ethernet(RJ45 connector)

  • Wiegand input/output

    Input 1ch, output 1ch

  • RS232

    1ch

  • RS485

    1ch

  • Power input

    DC12V(±10%)

  • Power consumption

    Max. 2.2A

  • Dimension(mm)

    172(W)X210(H)X66(D)mm without wall mount plate

  • Weight(g)

    Approx. 1,180g

  • Operating temperature

    32°F~113°F (0°C~45°C)

  • Storge Temperature

    -4°F~140°F (-20°C~60°C)

  • Humidity

    10%~90% Relative Humidity Non-Condensing

  • Installation mount

    Standard: Wall mounting / Flush mount(Optional)

  • Certificates

    CE, FCC, KC, IEC62741(Eye safety)
