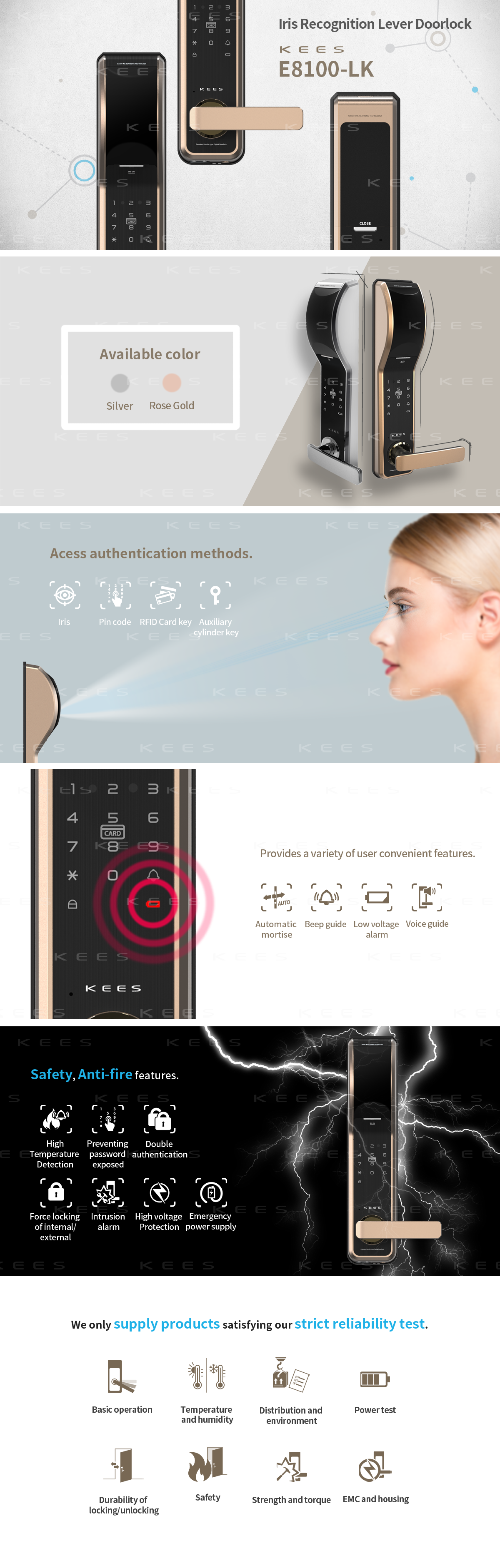

E8100-LK
Iris Authentication
Lever Handle Electronic Mortise Lock
Touchable Keypad
Pin Code Access
RFID Card
Voice Guide
Mechanical Cylinder Key
Automatic Locking
SPECS
-
Handle Type
Iris Recognition Lever Handle
-
Unlocking Method/Iris Authentication
Iris Authentication
Max. 20 users
-
Unlocking Method/Fingerprint Authentication
N/A
-
Unlocking Method/RFID Card Authenticaiton
Available Max.20ea(Mifare)
-
Unlocking Method/Pin Code Authentication
4~12 Digits number
-
Mechanical Cylinder Key
Included
-
Door Thickness(mm)
60~80mm(Optional: 40~60mm, 80~100mm)
-
Backset/Space Length(mm)
70.5/44mm
-
Power
6VDC(AA Batteries) x 8ea
-
Battery Life (10 times per day)
Approx. 12 months (manual w/up & w/o network)
Approx. 10months(Automatic Wake up & Using RF, Network options)
-
Emergency Battery
9VDC Emergency Battery Port
-
Material
Al die-cast & ABS mold
-
Weight(KG)
3.2KGS
-
Dimension(Outer: WxHxD/mm)
85.8x384.6x67.4mm
-
Dimension(Outer: WxHxD/mm)
90.4x368.4x92.8mm
-
Dimension(Strike Box: WxHxD/mm)
21x106x19.5mm
-
Dimension(Mortise: Front WxFront HxD/mm)
25x110x106mm
-
Limited Condition to install, Iris registration and athentication
1. Possible to register Iris with 40~45cm without glasses
2. Possible to register under 500lux
3. Prohibited to install at direct light condition
4. Available to authenticate under 4000lux
5. Limited to authenticate under back light
-
Caution
※ Depending on iris, eyes shape, registration and authentication may not be possible. If it can not be used, please use a password or RF card.
