MORTISE LOCK

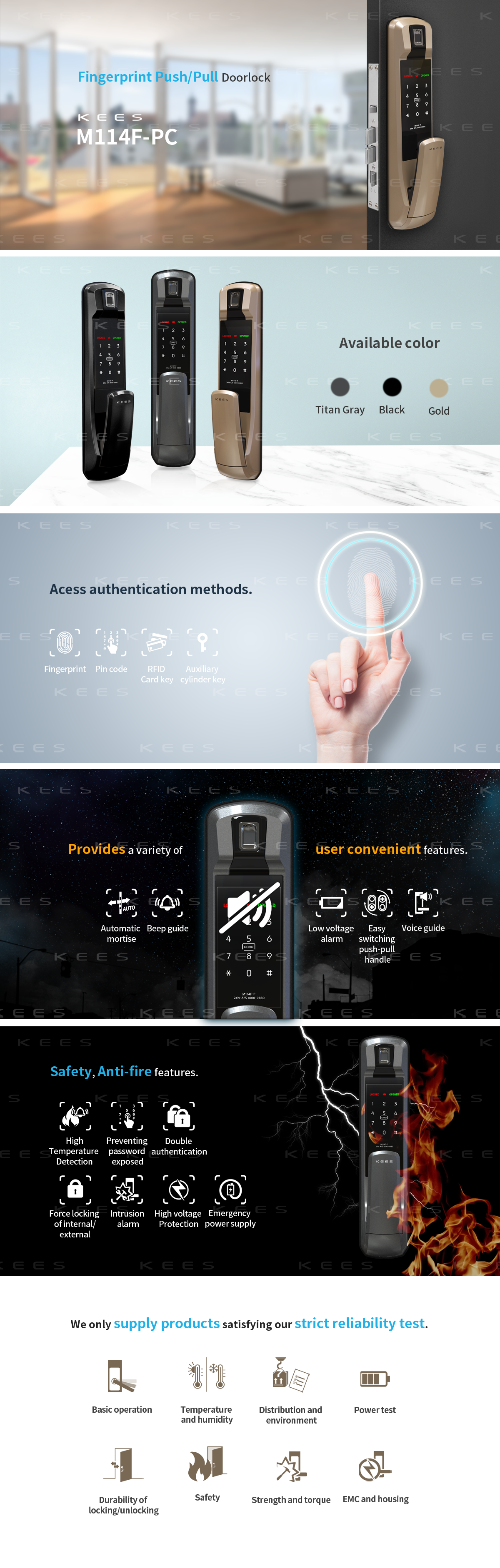

M114F-PC
Push pull Handle Electronic Mortise Lock
Fingerprint Authentication
Touchable Keypad
Pin Code Access
RFID Card
Voice Guide
Mechanical Cylinder Key
Automatic Locking
Euro Big Mortise
Optional: Remote door lock control via BLE communication pack or via RF commnunication pack for wall-pad
SPECS
-
Handle Type
Fingerprint Push-Pull Handle
-
Unlocking Method/Iris Authentication
N/A
-
Unlocking Method/Fingerprint Authentication
Fingerprint Authentication
Max. 100 users
-
Unlocking Method/RFID Card Authenticaiton
Available Max.50ea(Mifare)
-
Unlocking Method/Pin Code Authentication
6~13 Digits number
-
Mechanical Cylinder Key
Included
-
Door Thickness(mm)
40~50mm(Optional: 60~100mm)
-
Backset/Space Length(mm)
70.5/44mm
-
Power
6VDC(AA Batteries) x 4ea or 8ea
-
Battery Life (10 times per day)
Approx. 12 months (w/o RF Tag registration & w/o network option)
Approx. 10months(RF Tag registration & network option)
-
Emergency Battery
5VDC Micro USB Port
-
Material
Al die-cast & ABS mold
-
Weight(KG)
4.5KGS
-
Dimension(Outer: WxHxD/mm)
83.9x373.3x79mm
-
Dimension(Outer: WxHxD/mm)
84.1x374.2x80mm
-
Dimension(Strike Box: WxHxD/mm)
24x240x19.5mm
-
Dimension(Mortise: Front WxFront HxD/mm)
24x240x106mm
-
Optional
BLE Commnuication pack / RF Communication pack
