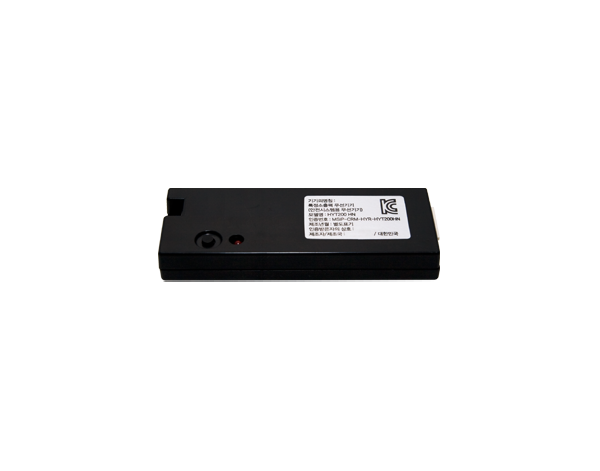

CTX-01

RF Transmission Pack

Frequency: 447.275MHz

Available Distance: Max.100M

Must be used with RF receiver

Available with M114F, M113F, M113K, M1102 series


产品规格

  • RF Transmission pack

    RF Transmitter

  • Frequency

    447.275MHz

  • Transmission speed

    2.4kbps

  • Signal distance

    Max. 100M

  • Receiving singal

    Active Low

  • Power voltage/consumption

    DC8~16V / DC30mA

  • Storage temperature

    -25 ~ +85℃

  • Operating temperature

    -10 ~ +50℃

  • Weight(g)

    Approx. 21g

  • Dimension(mm)

    80(W)x30.3(H)x10.5(D)mm

  • Cable pin assigment

    Red: DC12V

    Blue: GND

    Yellow: Signal(active low)

    Brown: GND

  • Available model

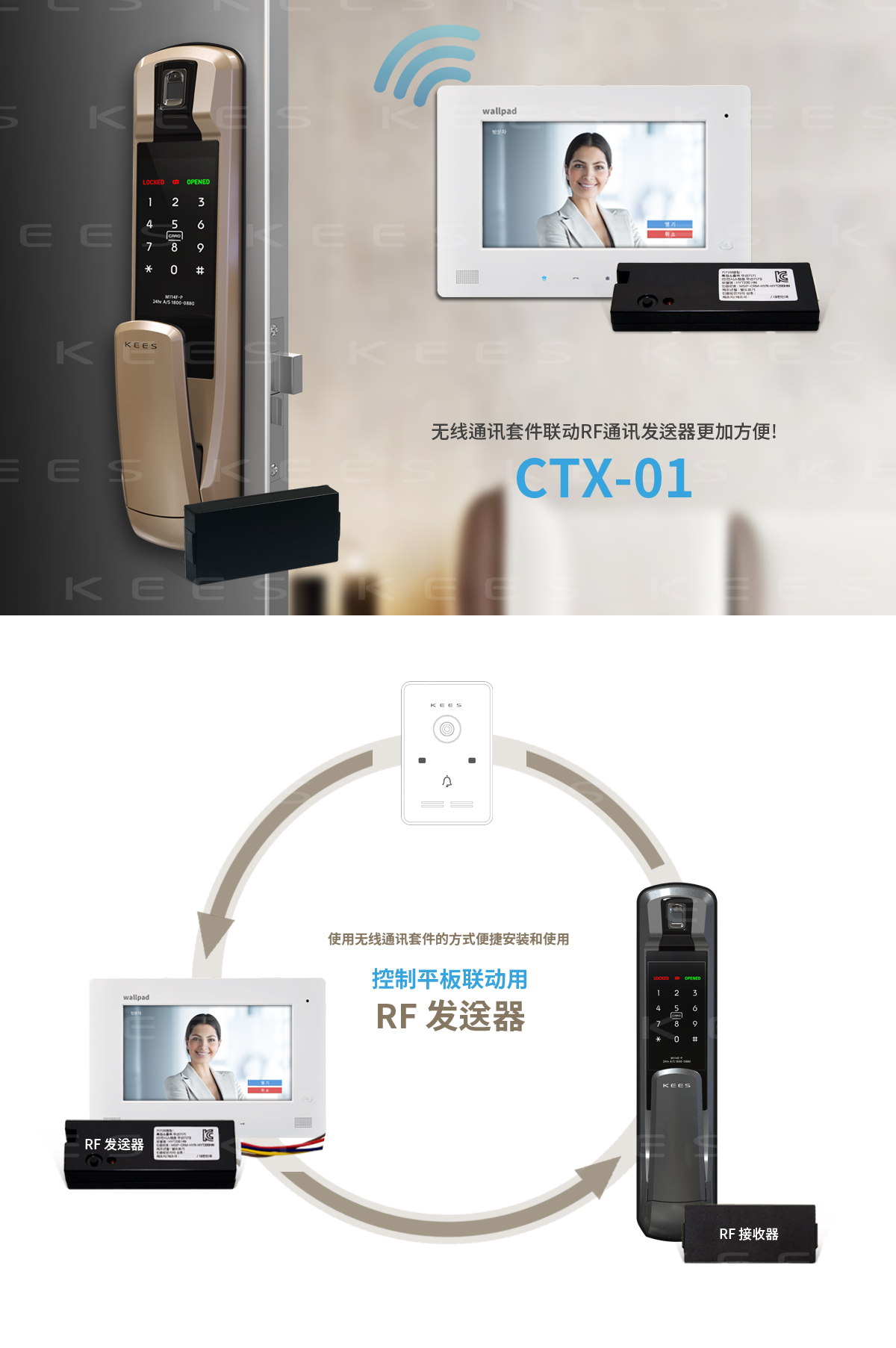

    RF-01(CTX-01+CRX-01 set): M114F, M113F, M113K, M1102 series
