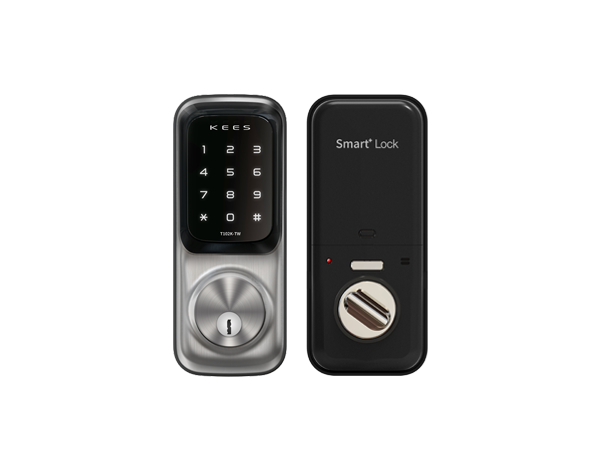

把手分开型主舌

T102K-TW

Electronic Deadbolt Lock

Touchable Keypad

Pin Code Access

Guest Password(Max.10ea)

Automatic Locking

Outdoor Weatherproof Design

Optional: Remote door lock control via BLE communication pack


产品规格

  • Deadbolt

    Electronic Deadbolt Lock

  • Unlocking Method/Iris Authentication

    N/A

  • Unlocking Method/Fingerprint Authentication

    N/A

  • Unlocking Method/RFID Card Authenticaiton

    N/A

  • Unlocking Method/Pin Code Authentication

    4~10 Digits number

  • Mechanical Cylinder Key

    Included

  • Door Thickness(mm)

    35~60mm

  • Backset/Space Length(mm)

    Backset 60 or 70mm

    Space length more than 127mm

  • Power

    6VDC(AA Batteries) x 4ea

  • Battery Life (10 times per day)

    Approx. 12 months (w/o network)

    Approx. 10 months(Network options)

  • Emergency Battery

    N/A

  • Material

    Al die-cast & ABS mold

  • Weight(KG)

    TBD

  • Dimension(Outer: WxHxD/mm)

    75x185x35mm

  • Dimension(Outer: WxHxD/mm)

    75x185x32mm

  • Dimension(Strike Box: WxHxD/mm)

    N/A

  • Dimension(Mortise: Front WxFront HxD/mm)

    N/A

  • Optional

    BLE Commnuication pack (BTRX-03)
