BTRX-01

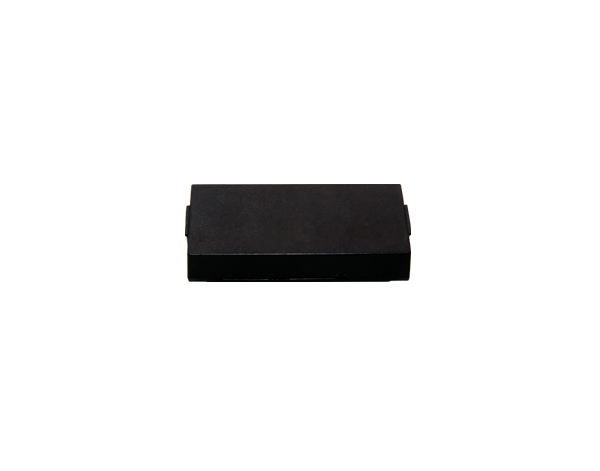

BLE Communication Pack
Bluetooth Low Energy 4.1
Available Keywe App(iOS, Android) on smartphone
Available with M114, M113 series
Optional: Wifi bridge
产品规格
-
BLE communication Pack
Available iOS, Android app
-
Bluetooth version
Bluetooth Low Energy 4.1
-
Frequency
2402~2480 MHz (40 Channels)
-
Operating Voltage
DC3.3V
-
Signal distance
Max. 20M
-
Antenna
Shorted dipole type PCB antenna
-
Storage temperature
-40 ~ +80℃
-
Operating temperature
-25 ~ +60℃
-
Weight(g)
Approx. 9.15g
-
Dimension(mm)
50.4(W)x24(H)x8.8(D)mm
-
Smartphone app
Keywe (iOS, Android)
-
Available model
M114F, M113F, M113K, M1102
