High-accuracy Iris Recognition Camera Systems

把手一体型

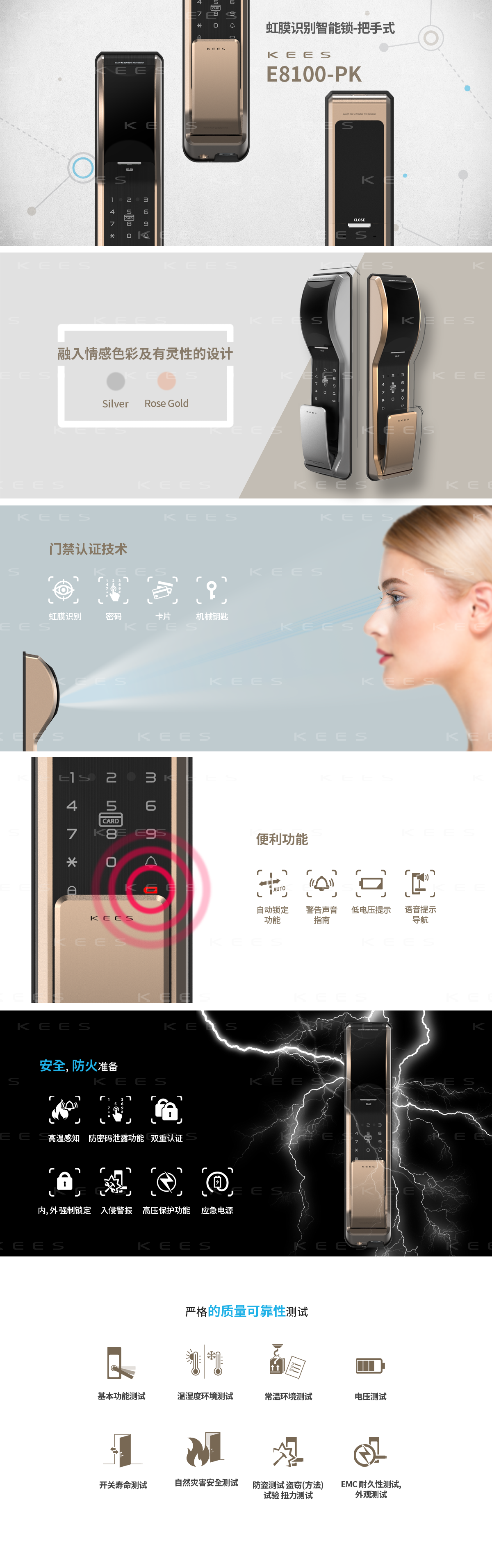

E8100-PK

Iris Authentication

Push pull Handle Electronic Mortise Lock

Touchable Keypad

Pin Code Access

RFID Card

Voice Guide

Mechanical Cylinder Key

Automatic Locking

Handle Type
Iris Recognition Push-Pull Handle
Unlocking Method/Iris Authentication
Iris Authentication
Max. 20 users
Unlocking Method/Fingerprint Authentication
N/A
Unlocking Method/RFID Card Authenticaiton
Available Max.20ea(Mifare)
Unlocking Method/Pin Code Authentication
4~12 Digits number
Mechanical Cylinder Key
Included
Door Thickness(mm)
60~80mm(Optional: 40~60mm, 80~100mm)
Backset/Space Length(mm)
70.5/44mm
Power
6VDC(AA Batteries) x 8ea
Battery Life (10 times per day)
Approx. 12 months (manual w/up & w/o network)
Approx. 10months(Automatic Wake up & Using RF, Network options)
Emergency Battery
9VDC Emergency Battery Port
Material
Al die-cast & ABS mold
Weight(KG)
3.5KGS
Dimension(Outer: WxHxD/mm)
85.8x404.6x67.4mm
Dimension(Outer: WxHxD/mm)
90.3x367x73.6mm
Dimension(Strike Box: WxHxD/mm)
21x106x19.5mm
Dimension(Mortise: Front WxFront HxD/mm)
25x110x106mm
Limited Condition to install, Iris registration and athentication
1. Possible to register Iris with 40~45cm without glasses
2. Possible to register under 500lux
3. Prohibited to install at direct light condition
4. Available to authenticate under 2,000~4,000lux
5. Limited to authenticate under back light
Caution
※ Depending on iris and eyes shape, registration and authentication may not be possible. If it can not be used, please use a password or RF card.
