把手一体型

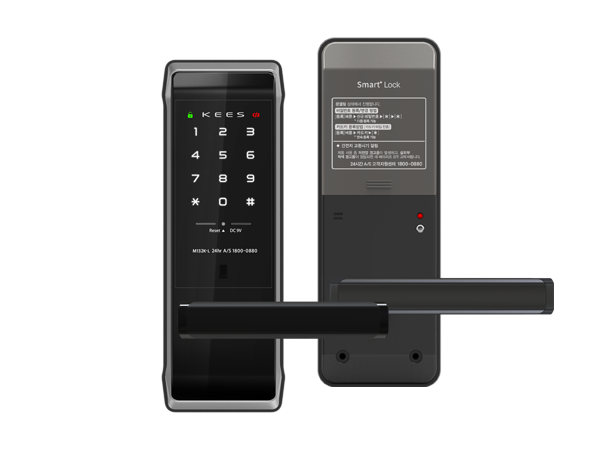

M132K-LK

Lever Handle Electronic Mortise Lock

Touchable Keypad

Pin Code Access

One Time Password

Automatic Locking

Mechanical Cylinder Key

Optional: Remote door lock control via BLE communication pack


产品规格

  • Handle Type

    Lever Handle

  • Unlocking Method/Iris Authentication

    N/A

  • Unlocking Method/Fingerprint Authentication

    N/A

  • Unlocking Method/RFID Card Authenticaiton

    N/A

  • Unlocking Method/Pin Code Authentication

    4~10 Digits number(Max.5ea)

  • Mechanical Cylinder Key

    Included

  • Door Thickness(mm)

    40~50mm(Optional: 60~100mm)

  • Backset/Space Length(mm)

    70.5/44mm

  • Power

    6VDC(AA Batteries) x 4ea

  • Battery Life (10 times per day)

    Approx. 12 months (w/o network)

    Approx. 10 months(Using RF, Network options)

  • Emergency Battery

    9VDC Battery Port

  • Material

    Al die-cast & ABS mold

  • Weight(KG)

    1.7KGS

  • Dimension(Outer: WxHxD/mm)

    81.7x239x67.1mm

  • Dimension(Outer: WxHxD/mm)

    84.5x239.5x36.5mm

  • Dimension(Strike Box: WxHxD/mm)

    21x106x19.5mm

  • Dimension(Mortise: Front WxFront HxD/mm)

    25x110x106mm

  • Optional

    BLE Commnuication pack
